Ignition coils are known as compact electrical transformers. Their purpose is to take the low 12-volt current normally found in car batteries and convert it into a much higher voltage which is needed to ignite the fuel and start the engine.
Each spark plug in a car has its own ignition coil. The coil is either physically connected to the spark plug with wires or it sits on top of the spark plug without using wires.
The spark plug needs about 15,000 to 20,000 volts of electricity in order to form an electric spark that can ignite the fuel. If you don’t have strong ignition coils then it will result in weak fuel consumption or engine misfires.
It’s important to note that a troublesome ignition coil can also be related to a low voltage or abnormally high voltage battery. This will also cause a range of other issues with the car and upgrading it to a new battery can see many issues go away.
Many batteries found in older cars can simply breakdown with age and one sign of a bad battery is if it’s not reading at least 12.65 Volts when fully charged, you know there are issues with the battery.
Here’s a good, 3 minute video demonstrating how an ignition coil works. Or simply scroll down to see read about the signs of a bad ignition coil.
If a vehicle is behaving intermittently and is giving its driver some trouble in a smooth driving, then it could indicate that the ignition coil of that vehicle has gone bad. The failed or weak ignition coil symptoms may vary depending on the severity of the ignition coil failure. Here are some of the most common symptoms of bad ignition coil.
Backfiring caused by your vehicle can indicate the symptoms of the ignition coil failure in its early stages. Car backfiring occurs when the unused fuel in the combustion cylinders of the engine leaves through the exhaust pipe.
If this problem is left unchecked, then it can result in costly repairs. The backfiring problem can usually be detected by the emission of a black smoke through the exhaust pipe. The smell of gasoline in that smoke may also give away the ignition coil failure.
Another sign of a faulty ignition coil is poor fuel economy. If your vehicle is getting noticeably less mileage than it was before, then it could mean that an ignition coil failure has occurred.
Engine misfiring will be seen in a vehicle whose ignition coils have failed. Trying to start the engine of such a vehicle will result in engine misfiring that sounds like a coughing, sputtering noise. When driving at high speeds, jerking and spitting will be seen in the behavior of the vehicle. A vehicle with a failed ignition coil will also result in vibration when it is idling at a stop sign or light.
Ignition coil failure may also result in the stalling of that vehicle. This can occur because of the irregular sparks sent to the spark plugs by the faulty coil. Your car may shut off completely when brought to stop leaving you with the trouble of it hopefully restarting.
Another symptom is rough idling of the engine, jerking, and hesitating while accelerating. It will feel like your vehicle is missing some power when driving.
Often, the check engine light will turn on in your dash. Most commonly, engine code P0351 (Ignition Coil – Primary/Secondary Circuit Malfunction) is what shows up when scanned using a car diagnostic tool. Scanning for the error code is probably the easiest way to troubleshoot a coil issue, so if you see that check engine light, grab your scan tool or have a repair shop confirm.
A hard to start engine is a symptom that will occur especially if your car uses a single coil. If the coil has a malfunction, it means the engine will be cranking without sparks inside the cylinders.
Here are some tips on testing an ignition coil based on whether they are a CNP (Coil-Near-Plug) or COP (Coil-On-Plug).

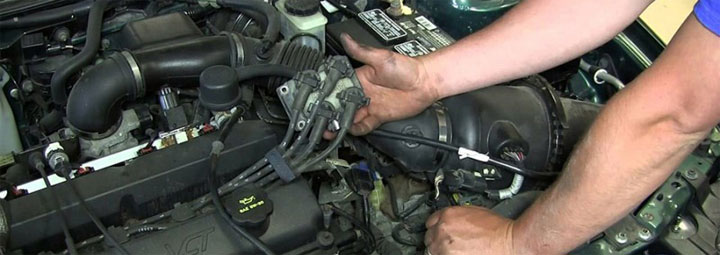

· To run a test on an ignition coil, first turn off your car’s engine and open up the hood. Remove or pull the spark plug wire from it (if you car uses CNP coils). These wires typically start from the distributor cap and run to the spark plug. Use rubber gloves and insulated tools when working with these electrical components or you may get a nice jolt.
· Now attach the new spark plug to the spark plug wire (new or old spark plug to test coil sparks). Use insulated pliers to hold the spark plug onto some metal part of the engine so that the threaded portion of the spark plug is touching the metal.
· Use a fuse removal tool or needle nose pliers to remove the fuse to the fuel pump to disable it and get ready to crank the engine. You may need an extra person to turn the key in the ignition because you are holding the spark plug down with the pliers.
· Once the engine is cranked, look for blue sparks forming along the spark plug gap. If you see blue sparks then your ignition coil is working properly.
· If you don’t see the sparks or if you see orange sparks then this is a sign of the ignition coil malfunctioning.
· When you’re done with the test, disconnect the spark plug, place it back in its hole, reconnect the spark plug wires to it, and put back the fuel pump fuse.
· Start the engine.
· Keeps the engine running at idle speed.
· Open the number 1 ignition coil bolt, and then pull up the coil to see how the engine runs.
If the engine’s condition changes to rough idling, that means the number 1 ignition coil is good. Then you can continue this step with the remaining coils one at a time until you find the culprit. When you pull out a faulty ignition coil, the engine condition/idle should not change.
